Product Catalog

Economic EDM Vises

Compact aluminium bodies for small and medium workpieces

VIS650 · VIS651 · VIS652 · VIS653 · VIS660 · VIS661 · VIS662

VIS650 Manual Magnetic Vise VIS650.75 / VIS650.100

Manual magnetic vise for general mould and fixture work, with simple and wear-resistant characteristics. Magnetic holding force suits small-to-medium workpieces.

Hold-down prevents the workpiece from lifting during the cut.
Single-body construction allows accurate clamping.
Designed for ease of use — short, small and compact.

VIS650 dimensions
Size (mm)	VIS650.75	VIS650.100
A	140	170
B	100	90
C	20	20
G (max)	75	100

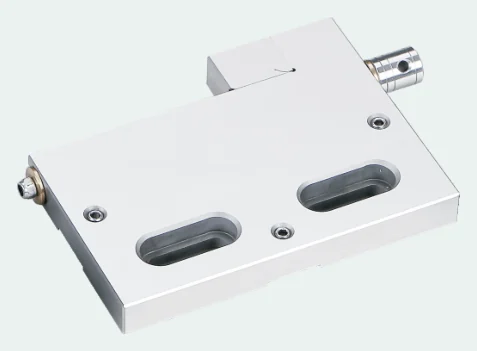

VIS651 Manual Ultra-thin Vise VIS651.50

A thin-profile manual vise for slim and delicate parts where a full-height jaw would obstruct the wire path.

Suitable for a variety of aluminium and machined workpieces.
Thin working profile — ideal for small workpieces.
Short and small; compact in size.

VIS651 material & precision
Item	Specification
Material	Match-grade stainless steel
Hardness	HRC 50–55
Flatness	0.005 mm / 100 mm
Parallelism	0.005 mm / 100 mm
Squareness	0.005 mm / 100 mm

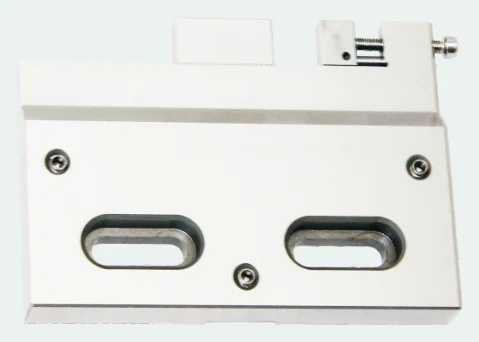

VIS652 Ultra-thin Vise VIS652.50 / VIS652.75 / VIS652.100

Fixed ultra-thin vise for slim workpieces. Available in three jaw widths to suit different plate thicknesses.

Thin working profile keeps the wire path clear.
Three standard sizes: 50, 75 and 100 mm.
Short and small; compact in size.

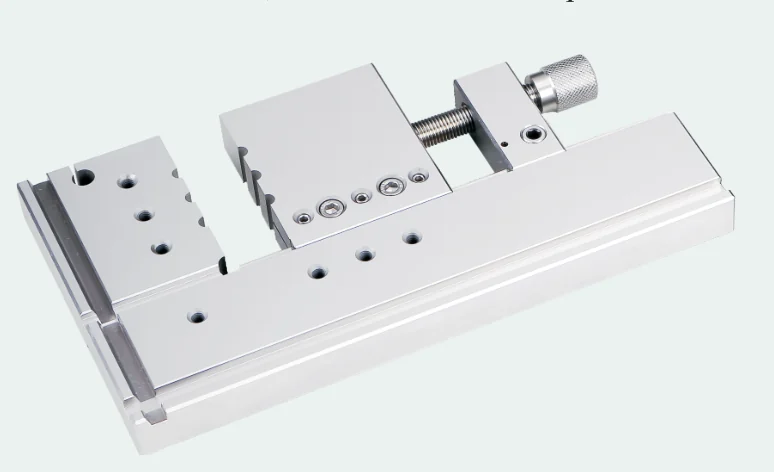

VIS653 Manual Ultra-thin Vise VIS653

Manual thin-profile vise for mould and fixture machining, with a hold-down that resists workpiece lift.

Jaw opening range: 0–100 mm.
Hold-down feature prevents the workpiece from lifting.
Suits small workpieces where space is tight.

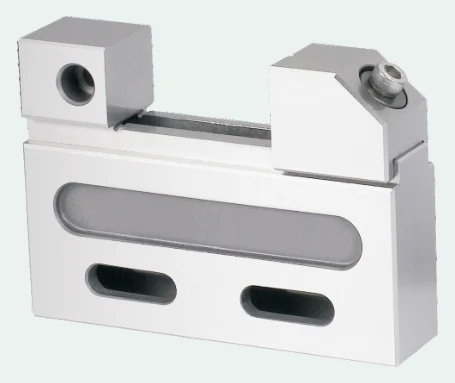

VIS660 Manual Vise VIS660.50 / VIS660.100

Manual vise with a stable front force body, offering good force transmission and wear resistance. Clamping force works to 45° obliquely downward so the workpiece stays seated.

Prevents the workpiece from lifting.
Compact size suits small workpieces.
Accurate clamping from single-body construction.

VIS660 dimensions
Size (mm)	VIS660.50	VIS660.100
A	120	170
B	85	90
C	20	20
D	25	30
E	30	30
G (max)	50	100
Weight (kg)	0	0.6

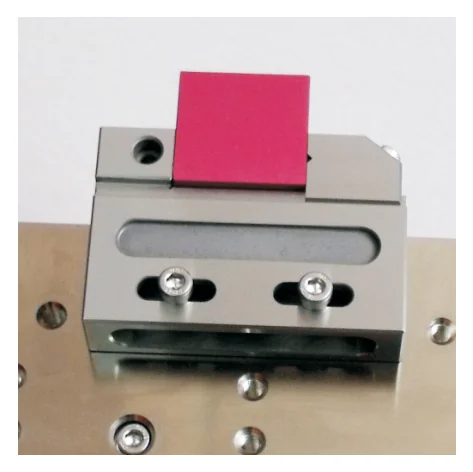

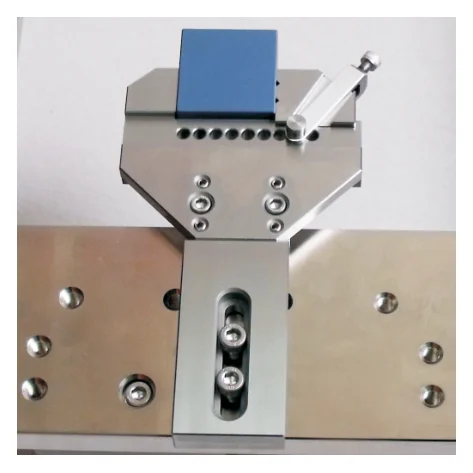

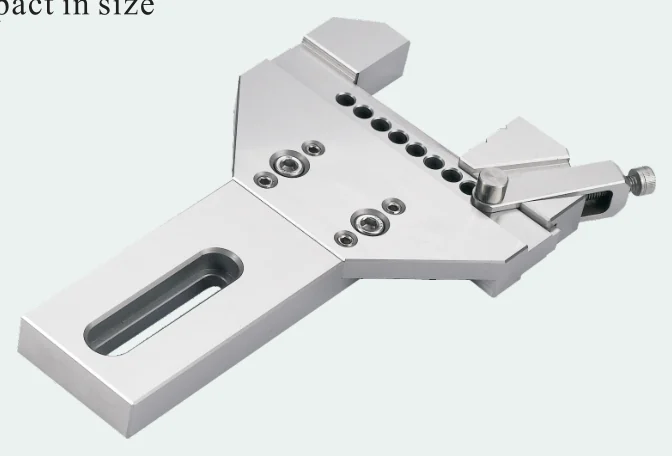

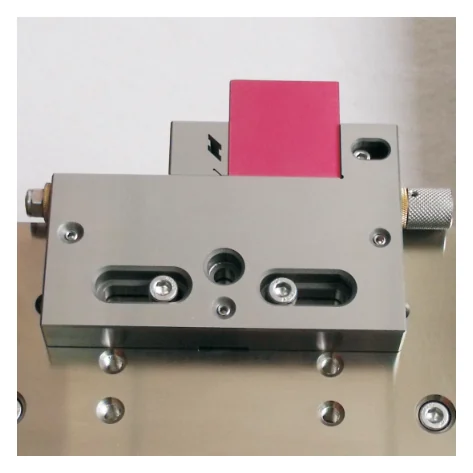

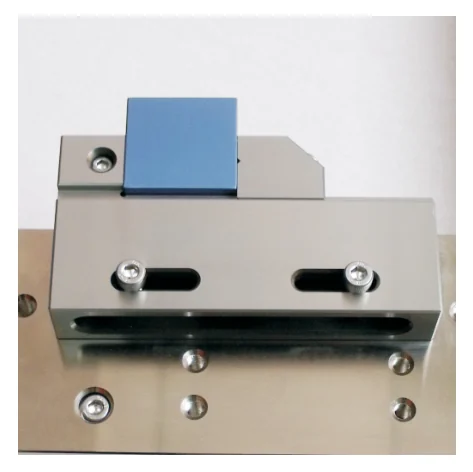

VIS661 Manual Slow Vise VIS661

A manual vise for large workpieces. The slow-travel screw gives fine, controlled approach as the workpiece is brought onto the wire table.

Suits workpieces of greater size and mass.
Designed for ease of use; short and compact.

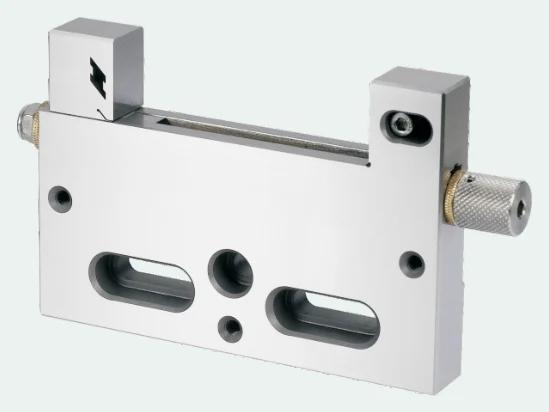

VIS662 Manual Vise VIS662.50 / .75 / .100

Manual vise with a stable front force body, providing good clamping on machine tools and workpieces.

Hold-down prevents the workpiece from lifting.
Accurate clamping from single-body construction.
Suits small workpieces; compact and short in size.

Power & Heavy-Duty Vises

Higher clamping force and vertical clamping for rigid setups

VIS663 · VIS664 · VIS665 · VIS666 · VIS667 · VIS654

VIS663 Power Vise VIS663.100 / VIS663.150

Power-driven vise with a stable front force body, delivering strong force transmission and good wear resistance. Clamping force works at 45° obliquely downward.

Compact size — perfect for small workpieces.
Clamping force works to 45° obliquely downward and prevents lifting.
Maximum load up to 12 kg.

VIS663 dimensions & capacity
Size (mm)	VIS663.100	VIS663.150
A	170	320
B	135	155
C	32	32
D	32	32
E	50	75
G (max)	100	150
Weight (kg)	4	5.5
Max load (kg)	10	12

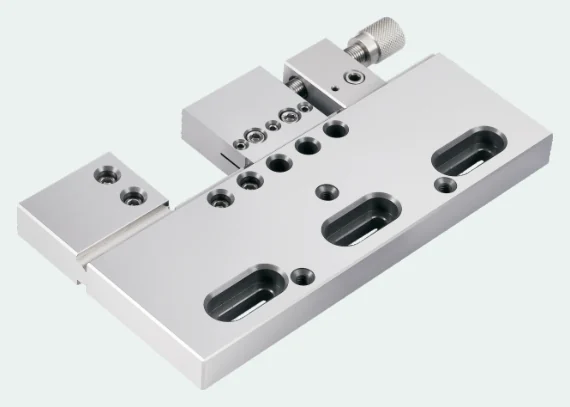

VIS664 manual vertical clamping EDM vise

VIS664 Manual Vertical Clamping Vise VIS664.100 / VIS664.150

Vertical clamping action for workpieces that need to be held from above. The lock-down structure is attached to the screw holder for quick clamping.

Lock-down structure attached to the screw holder — quick clamping.
Easy to use, with a simple design.
Maximum load up to 10 kg.

VIS664 dimensions
Size (mm)	VIS664.100	VIS664.150
A	247	320
B	145	145
C	55	55
D	35	35
E	60	60
G (max)	100	150
Weight (kg)	4.3	6
Max load (kg)	8	10

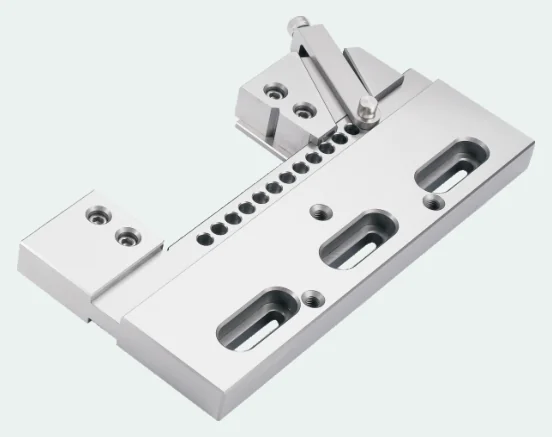

VIS665 Manual Slow Vise VIS665.100 / VIS665.150

Heavy-duty manual vise with fine slow-travel control. The two-pin lock-down structure is attached to the screw holder for quick, positive clamping.

Two-pin lock-down structure for fast, positive clamping.
Easy to use; simple, robust design.
Maximum load up to 10 kg.

VIS665 dimensions
Size (mm)	VIS665.100	VIS665.150
A	220	270
B	123	123
C	32	32
D	45	50
E	50	60
G (max)	100	150
Weight (kg)	4	5.5
Max load (kg)	8	10

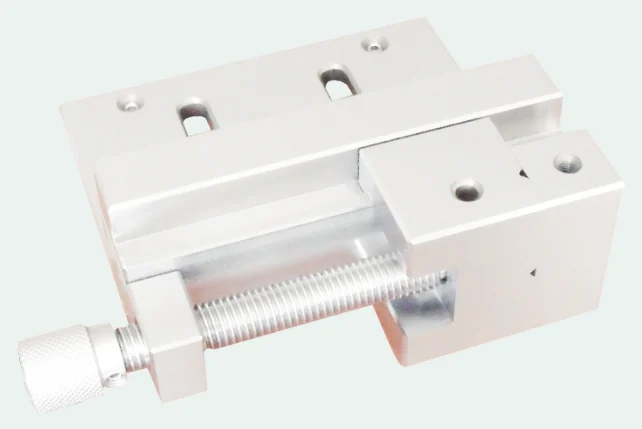

VIS666 Manual Right-angle Vise VIS666.25 / VIS666.30

Right-angle vise for wire-cut machining of various parts, supplied with a wrench and nut arrangement.

Pie-lock structure attached to the screw holder — quick clamping possible.
Easy to use; simple design.

VIS666 dimensions
Size (mm)	VIS666.25	VIS666.30
A	175	180
B	140	140
C	55	70
D	22	32
G (max)	82	100
Weight (kg)	3.7	4.5
Max load (kg)	5	8

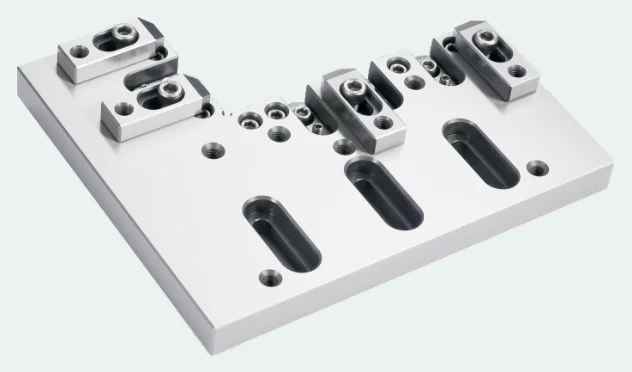

VIS667 Right-angle Vise VIS667

For wire-cut machining of parts and thin plate components. The substrate support attaches or removes as needed.

Two-step clamp type — adjustable even for thin metal workpieces.
Freely usable on both the right and the left.
Substrate support attaches or removes easily.

VIS667 capacity
Property	Value
Weight	5.9 kg
Maximum load	12 kg

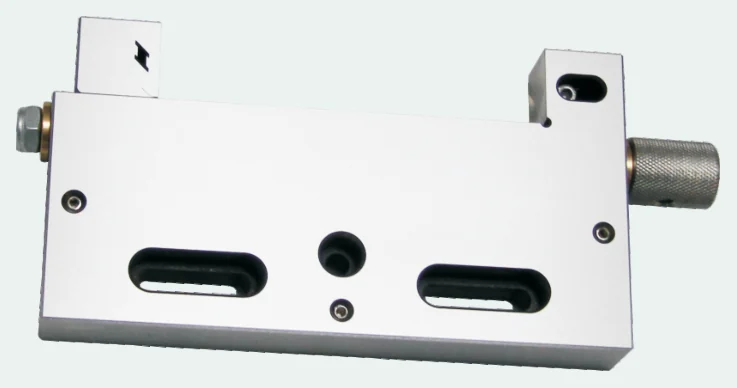

VIS654 Manual Slow Wire Vise VIS654

A robust manual vise with strong clamping capability for larger wire-cut workpieces. Stable, positive clamping under sustained cuts.

Strong clamping force, stable hold for extended cuts.
Weight 5.9 kg; maximum load 8 kg.

Adjustable Vises

X / Y / Z adjustment — attach once, re-centre in seconds

VIS680 · VIS681 · VIS682 · VIS683 · VIS684 · VIS685 · VIS686

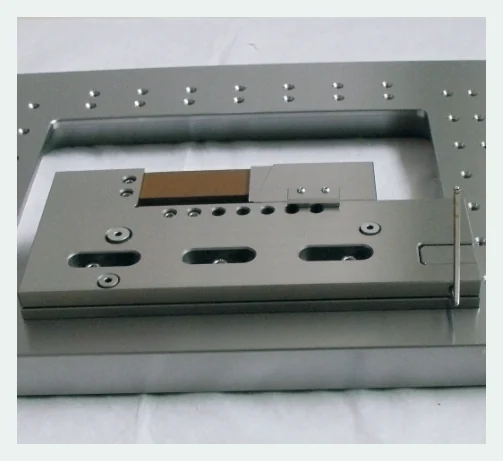

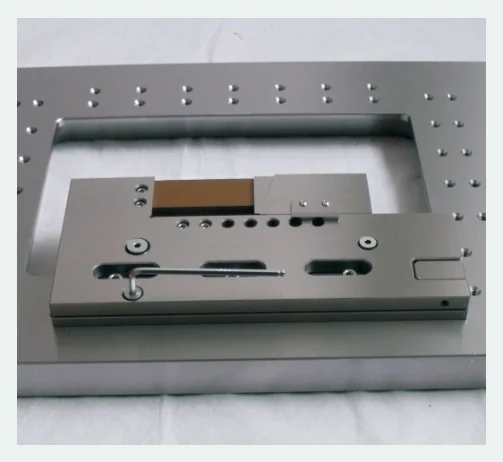

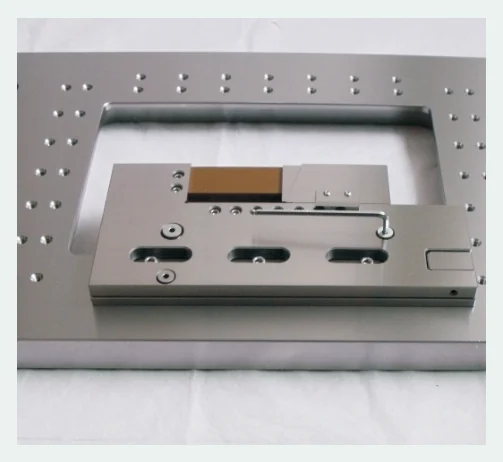

VIS680 Adjustable Vise VIS680.100 / VIS680.160

Three-axis adjustable vise. The vise can be easily attached to the work stand while standard fastening accessories remain in place. Work speed increases because workpieces no longer need to be removed each time.

Horizontal, vertical and parallel adjustment in one body.
Attach to the work stand once; fine positioning afterwards.
Maximum load up to 10 kg.
0.2 mm leeway is given to avoid interference with the wire guide after adjustment.

VIS680 dimensions
Size (mm)	VIS680.100	VIS680.160
A	270	350
B	170	170
C	32	32
D	32	32
E	60	60
G (max)	100	160
Weight (kg)	5.4	7.8
Max load (kg)	10	10

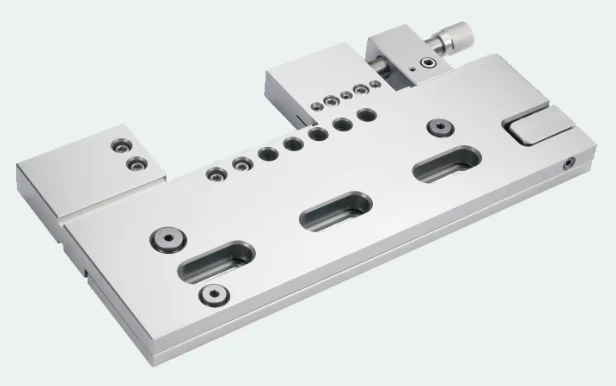

VIS681 Manual Adjustable Vise VIS681.100 / VIS681.160

Manual version of the three-axis adjustable vise. Attaches to the work stand while the standard fastening accessories stay in place, so work can be exchanged without disturbing the setup.

Horizontal, vertical and parallel adjustment.
Quick-release attachment to the work stand.

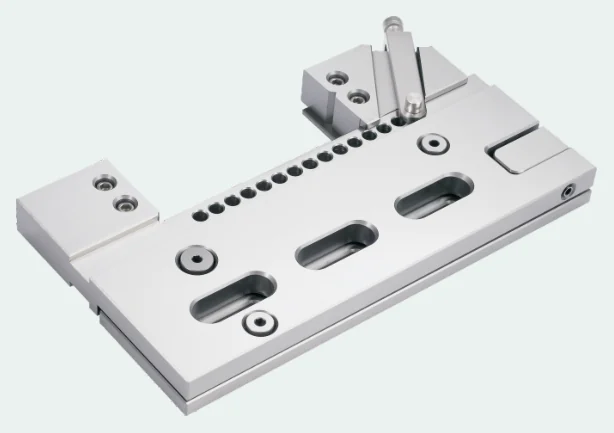

VIS682 Manual Adjustable Vise VIS682.100 / VIS682.160

A compact manual adjustable vise for smaller work stands, with the same X / Y / Z adjustment principle as the VIS680 series.

Horizontal, vertical and parallel adjustment.
Suits smaller tables and lighter parts.

VIS682 dimensions
Size (mm)	VIS682.100	VIS682.160
A	220	270
B	135	155
C	24	24
D	46	50
E	50	60
G (max)	100	160
Weight (kg)	4.8	7
Max load (kg)	6	7.2

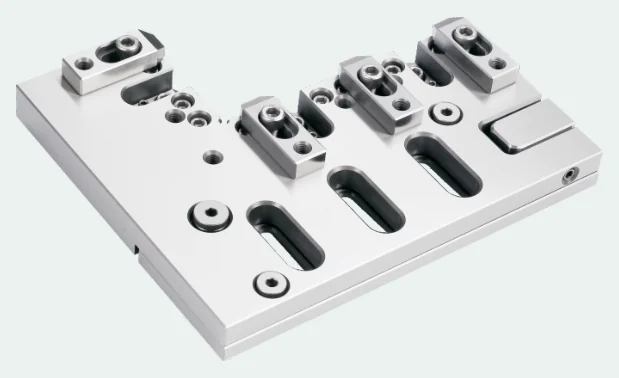

VIS683 Adjustable Vise VIS683

Heavy-capacity adjustable vise for larger workpieces. Clamping force works at 45° obliquely downward and prevents the workpiece from lifting.

Compact size; maximum load 8 kg.
45° oblique downward clamping force.

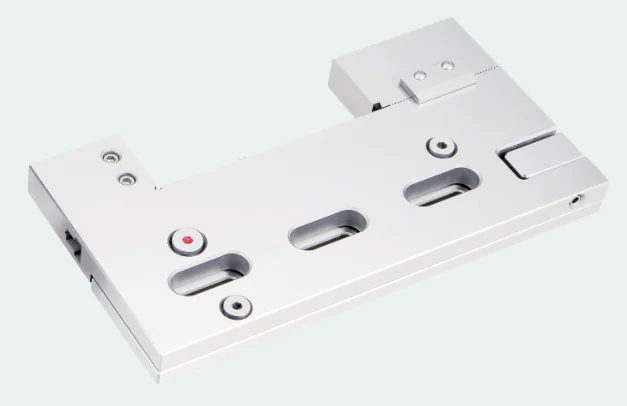

VIS684 Adjustable Vise VIS684.100 / VIS684.160

Adjustable vise for larger work stands, sharing the standard VIS680 mounting interface and adjustment principle.

Horizontal, vertical and parallel adjustment.
Quick-release attachment; 0.2 mm wire-guide leeway.

VIS684 dimensions
Size (mm)	VIS684.100	VIS684.160
A	240	300
B	160	160
C	32	32
D	32	32
E	60	60
G (max)	100	160
Weight (kg)	5.4	7.8
Max load (kg)	10	10

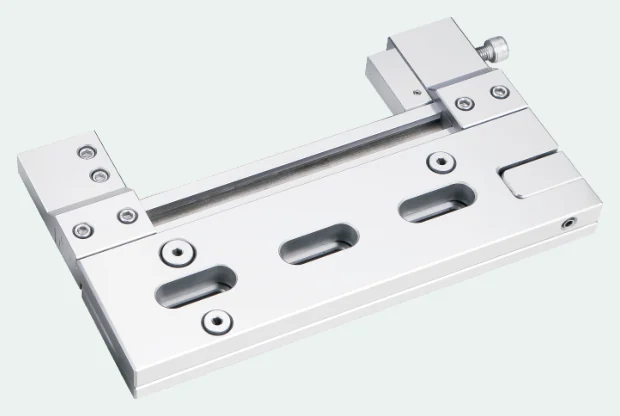

VIS685 Adjustable Combination Vise VIS685

Maraging stainless steel adjustable vise with high hardness and wear resistance, a wide clamping range and strong, lasting hold. Supplied with a set of optional accessories.

Maraging stainless steel body, high hardness and wear resistance.
Wide jaw range with strong, durable clamping force.

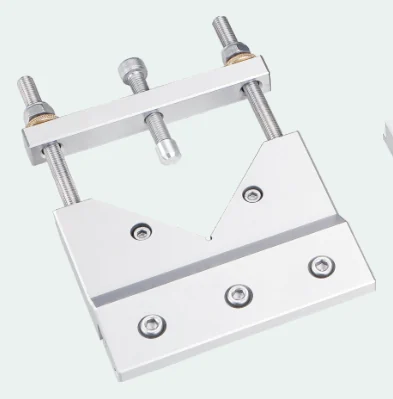

Optional accessories extend the clamping configurations.

VIS686 Horizontal Adjustable Universal Base VIS686

The horizontal centring backbone of the system. Special thin support modules reinforce stable workpiece placement, and the fixture is firmly clamped during machining.

Special bearings allow horizontal centring of the workpiece to be done easily and quickly — machine idle time is improved.
Works efficiently with V-block for large/small round work, L-block for wire-axis workpieces, and vises for square workpieces.
Suitable for rainproofing by adding martensitic stainless steel (annealed and finished).
Specially designed to suit large discs and other irregular parts, keeping machine performance at its best.

VIS686 specification
Item	Specification
Material	BHCD-32*
Hardness	HRC50-32*
Flatness	0.005 mm / 100 mm
Parallelism	0.005 mm / 100 mm
Squareness	0.005 mm / 100 mm

Note: when the quasi-peripheral attachment is not used due to workpiece thickness exceeding 1.5 mm (including thick wire), grind the table before the underside of the work and leave a 10 mm step on the table axis.

Combination Vises

Multi-face kits that cover most profiles with one purchase

VIS668 · VIS655 · VIS693

VIS668 combination right angle EDM vise kit

VIS668 Combination Right-angle Vise VIS668

A complete kit of right-angle clamping faces and blocks for wire-cut machines and workpiece conditions. Strong, durable clamping with a wide jaw position range.

Compact size — perfect for small workpieces.
Clamping force works to 45° obliquely downward, preventing lift.
Four illustrated clamping configurations shown in the catalog.

VIS668 specification
Item	Specification
Material	BHCD-32*
Hardness	HRC50-32*
Flatness	0.005 mm / 100 mm
Parallelism	0.005 mm / 100 mm
Squareness	0.005 mm / 100 mm

VIS655 Wire-cut Jig Clamp VIS655

Maraging stainless steel clamp with high hardness and wear resistance, for round workpieces and other cylindrical parts.

Material SUS440 maraging stainless steel.
Clamping capacity: 0–50 mm and 0–100 mm versions.
Ideal for holding round stock during wire cutting.

VIS655 specification
Item	Specification
Material	SUS440
Hardness	HRC50-55
Capacity	0–50 mm / 0–100 mm
Flatness	0.005 mm / 100 mm

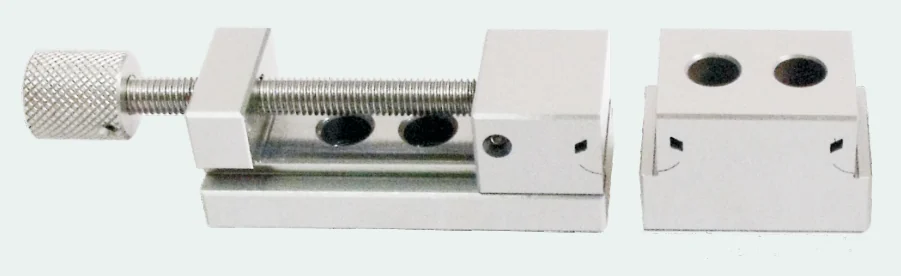

VIS693 Modular Wire-cut Jig Clamp VIS693

A modular split-fixture system used in pairs. Designed for die-frame work, allowing larger overall workpieces and fast, convenient operation.

Used in combination as a split fixture for die frames.
Supports larger workpieces than a single clamp.
Quick and convenient to operate.

VIS693 available sizes
Model	Size
VIS693	130558015
VIS693	150558013
VIS693	160558013
VIS693	150558015

Wire-cut Bridges

Modular bridges for large workpieces and extended work stands

VIS690 · VIS691 · VIS692 · VIS694

VIS690 Bridge L370 – L950

Bridge fixturing for wire-cut machines and large workpieces. Built from a modular die-frame series, it can be fixed to an extended work stand. A flat-plane workpiece can be secured with a single set of two pieces.

Designed and manufactured in accordance with various work stands.
L dimension is determined by the centre distance of the machine table.
High machining accuracy.

VIS690 dimensions (mm)
L	L1	B	H
370	—	45	30
450	—	60	30
550	—	60	30
650	—	60	30
730	—	80	36
950	—	80	36

VIS690 material & precision
Item	Specification
Material	SUS440 maraging stainless steel
Hardness	HRC 50–55
Flatness	0.005 mm / 100 mm
Parallelism	0.005 mm / 100 mm
Squareness	0.005 mm / 100 mm

VIS691 Bridge L370 – L950

Bridge fixturing for wire-cut machines and large workpieces, used in combination with modular die-frame tooling. Available with a rotary indexing option.

Modular configuration for large workpieces.
Optional rotary table indexing for angular positioning.

VIS691 dimensions (mm)
L	L1	B	H
370	—	45	30
450	—	60	30
550	—	60	30
650	—	60	30
730	—	80	36
950	—	80	36

VIS692 Bridge L370 – L950

Bridge fixturing for wire-cut machines and large workpieces, paired with the modular die-frame tooling series.

Modular bridge system for extended work stands.
Five standard lengths to match table centre distances.

VIS692 dimensions (mm)
L	L1	B	H
370	—	45	30
430	—	60	30
550	—	60	30
650	—	60	30
730	—	80	36
950	—	80	36

VIS694 Bridge L370 – L950

Bridge fixturing for wire-cut machines and large workpieces, with hole patterns configured to suit your tooling layout.

Hole pattern configurable to match die-frame tooling.
Five standard lengths available.

VIS694 dimensions (mm)
L	L1	B	H
370	—	45	30
450	—	60	30
550	—	60	30
650	—	60	30
730	—	80	36
950	—	80	36

Stainless Steel Vises & Tooling

Corrosion-resistant tooling for die frames and press-down work

VIS676 · VIS677 · VIS678 · VIS679

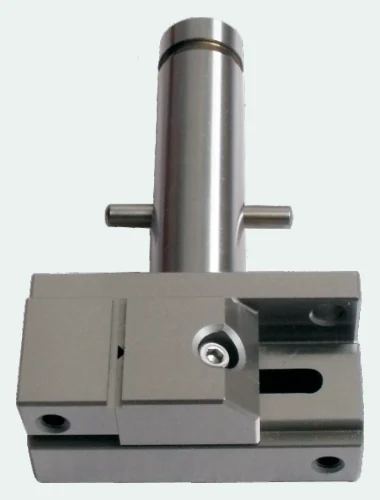

VIS676 Stainless Steel Vise 1" / 1.5" / 2.0"

Stainless steel vise for wire-cut EDM machining. Corrosion-resistant, dimensionally stable and built for production use.

Three imperial sizes: 1", 1.5" and 2.0".
Stainless steel construction for durability.

VIS676 dimensions (mm)
Size	1"	1.5"	2.0"
A	65	100	135
B	25	35	40
C	30	35	50
D	12	16	24
E	—	30	40
G (max)	20	45	60

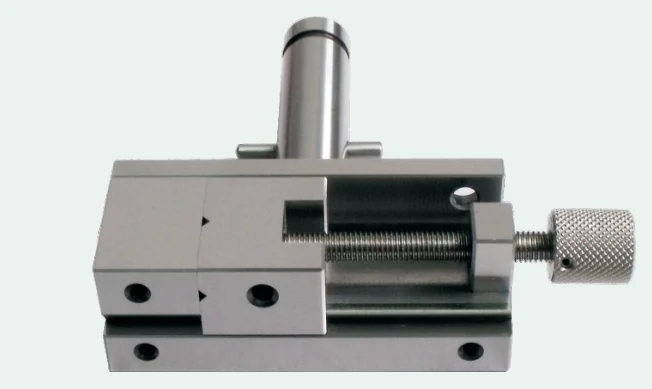

VIS677 Manual Stainless Steel Vise 1.5" / 2.0"

Manual stainless steel vise in imperial sizes — the workhorse for corrosion-prone EDM environments.

Manual clamping, stainless steel body.
Available in 1.5" and 2.0" jaw capacities.

VIS677 dimensions (mm)
Size	1.5"	2.0"
A	180	135
B	35	50
C	50	65
D	16	24
E	30	40
G (max)	45	60

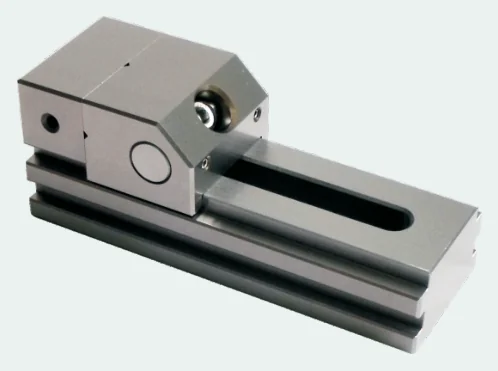

VIS678 Stainless Steel Tooling Vise 15 – 40

A metric stainless steel tooling vise in five sizes, for die-frame and general EDM fixturing.

Five sizes: 15, 20, 25, 30 and 40.
Stainless steel body; high hardness and wear resistance.

VIS678 dimensions (mm)
Size	15	20	25	30	40
A	100	140	175	190	230
B	35	40	50	60	70
C	40	50	60	70	80
D	20	25	30	35	40
E	20	25	30	35	40
G (max)	45	75	90	100	125

VIS679 Manual Stainless Steel Tooling Vise 20 – 40

Manual stainless steel tooling vise for die-frame machining, in four metric sizes.

Sizes: 20, 25, 30 and 40.
Manual operation with positive stainless steel clamping.

VIS679 dimensions (mm)
Size	20	25	30	40
A	140	160	180	210
B	40	45	50	55
C	50	60	68	74
D	25	30	35	45
E	25	30	35	45
G (max)	—	—	50	55

Hold-down Tooling & Press Plates

Stopping the workpiece lifting during a long cut

VIS671 · VIS672 · VIS673 · VIS674 · VIS675

VIS671 Two-eye Tooling 120×40×15

For wire-cut machines and general fixturing. Recommended maximum work stand capacity 20 kg.

VIS672 Three-eye Tooling 120×55×15

Three-point hold-down for stable seating on larger plates. Recommended capacity 20 kg.

VIS673 Extension Tooling

Extension tooling for wire-cut machines and general fixturing. Adjustable reach 55–115 mm; recommended capacity 20 kg.

VIS674 Angle Tooling

Adjustable angle tooling for wire-cut machines and general fixturing, with an adjustable range of 35×–135 mm. Recommended maximum work stand weight 20 kg.

Adjustable angle range: 35×–135 mm.
Holds the workpiece firmly at an angle for profile cutting.

VIS675 Press Plate 70×23×30 / 70×23×12

Used together with super-hard tooling to press the workpiece so it cannot move during the cut.

Two plate thicknesses available: 30 mm and 12 mm.
Materials 420 and 384.
Positive hold-down that prevents workpiece movement.

Work Platforms & Clamp Brackets

The base layer every fixture sits on

VIS610 · VIS611 · VIS612 · VIS613

VIS610 Work Platform

HI series

A wire-cut EDM work platform with stainless steel and angle-vise options, in hardness HRC 25–245. An integral part of the cutting machine, forming the fixture support.

VIS611 wire-cut work platform with fixture setup

VIS611 Work Platform
