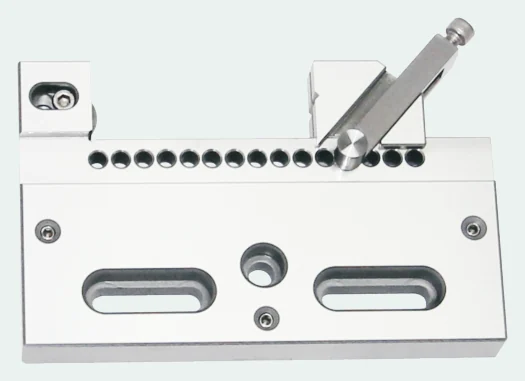

VIS650 Manual Magnetic Vise
VIS650.75 / VIS650.100Magnetic holding in a compact single body. The hold-down feature prevents the workpiece from lifting during the cut.
Precision Vise · General Catalog

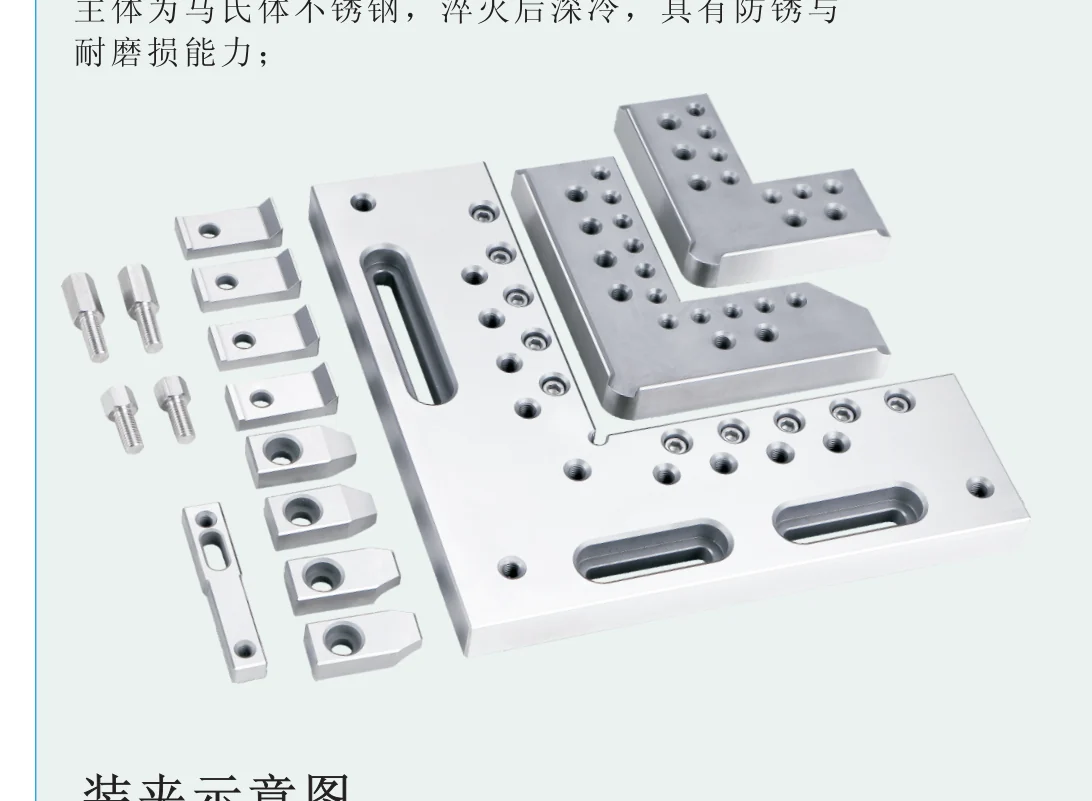

Systematized fixturing for wire-cut EDM
A complete, standardised range of EDM vises, bridges, tooling and work platforms — engineered so that every fixture on your machine speaks the same language. Fast to set, precise to hold, effective in production.
One-stop supply
Standard product series
Aluminium & stainless steel
Repair & modification
8Product families
40+Standard models
HRC 50–55Hardened steel
0.005Flatness / 100 mm
Product Range
Eight families, one fixture language
Every family shares the same mounting logic, the same material grades and the same hold-down principle — so a shop can standardise its cell without re-learning every station.

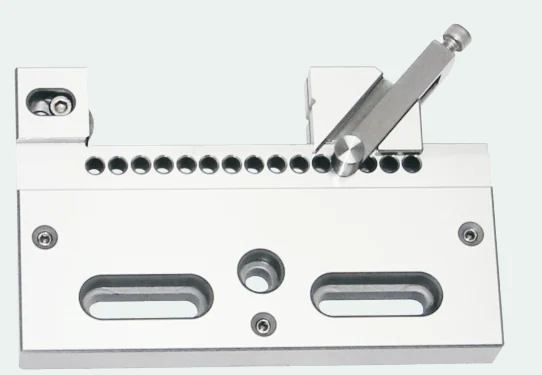

EDM Vises
Manual, power-driven, ultra-thin, right-angle and vertical-clamping models.
VIS650 – VIS667
Adjustable Vises
Horizontal, vertical and parallel adjustment for fast setup without rework.
VIS680 – VIS685

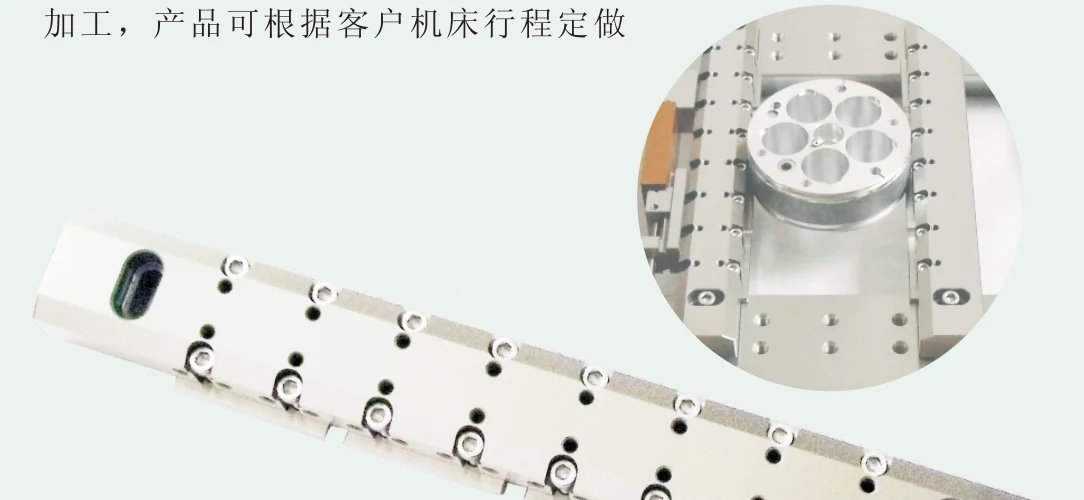

Bridges
Modular bridge fixturing for large workpieces and extended work stands.
VIS690 – VIS694

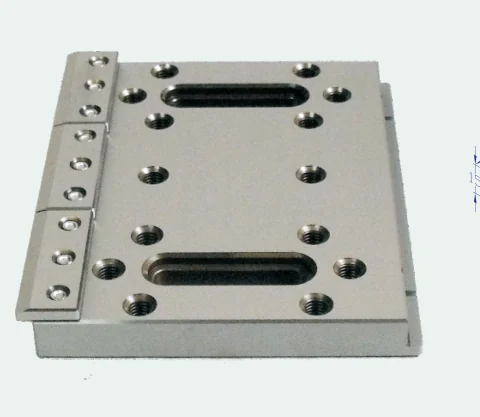

Tooling & Press Plates
One-eye, two-eye, three-eye, angle tooling, extensions and hold-down plates.
VIS671 – VIS679
Why systematized fixturing
Built around how a wire-cut machine actually works
On a wire-cut EDM the workpiece is held on a thin, floating table and the wire must never touch the fixture. These constraints drive every feature in the range.
Hold-down that prevents lifting
A positive downward hold-down keeps the workpiece seated, so thermal expansion during a long cut can never raise it off the table.
45° oblique clamping force
Clamping is directed downward and forward at 45°, so the workpiece is pressed firmly against the table rather than pushed sideways.
Single-body construction
Machined from one solid body where possible — fewer interfaces mean better parallelism and far less deflection under clamping load.
Modular, not bespoke
Bridges, vises and tooling share one hole grid, so a fixture built for one station can be reconfigured for the next job.
Hardened, ground accuracy
Aluminium bodies for lightness, SUS440 / HRC 50–55 maraging steel where wear matters — flatness and squareness held to 0.005 mm per 100 mm.
Fast, simple setup
Screw-holder lock structures and single-lever clamping mean a new job can be fixtured in minutes, not an afternoon.
Selected products
The workhorses of the range
Six models that cover the majority of daily wire-cut fixturing work.

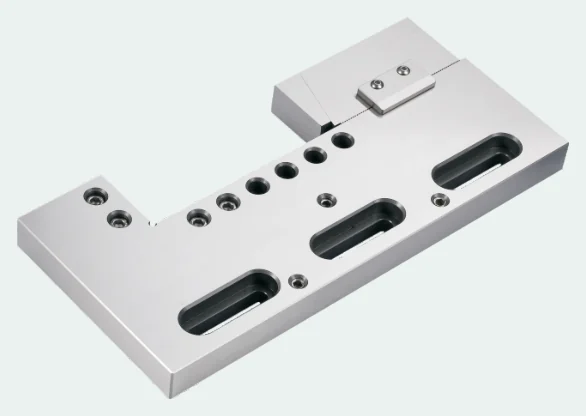

VIS663 Power Vise
VIS663.100 / VIS663.150Clamping force applied at 45° obliquely downward. Compact size suits small workpieces; holds up to 12 kg.

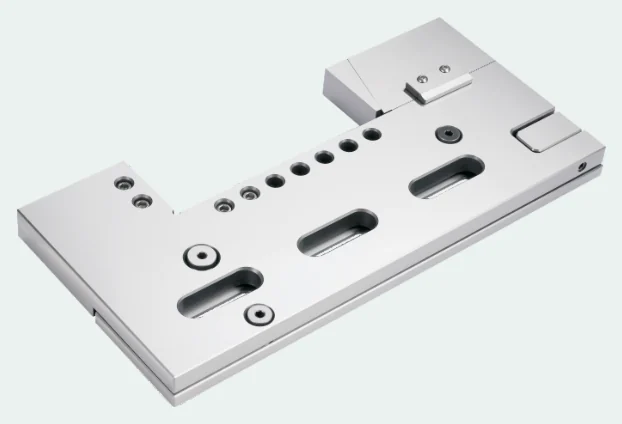

VIS680 Adjustable Vise
VIS680.100 / VIS680.160Horizontal, vertical and parallel adjustment in one body. Attach to the work stand once, then re-centre in seconds.

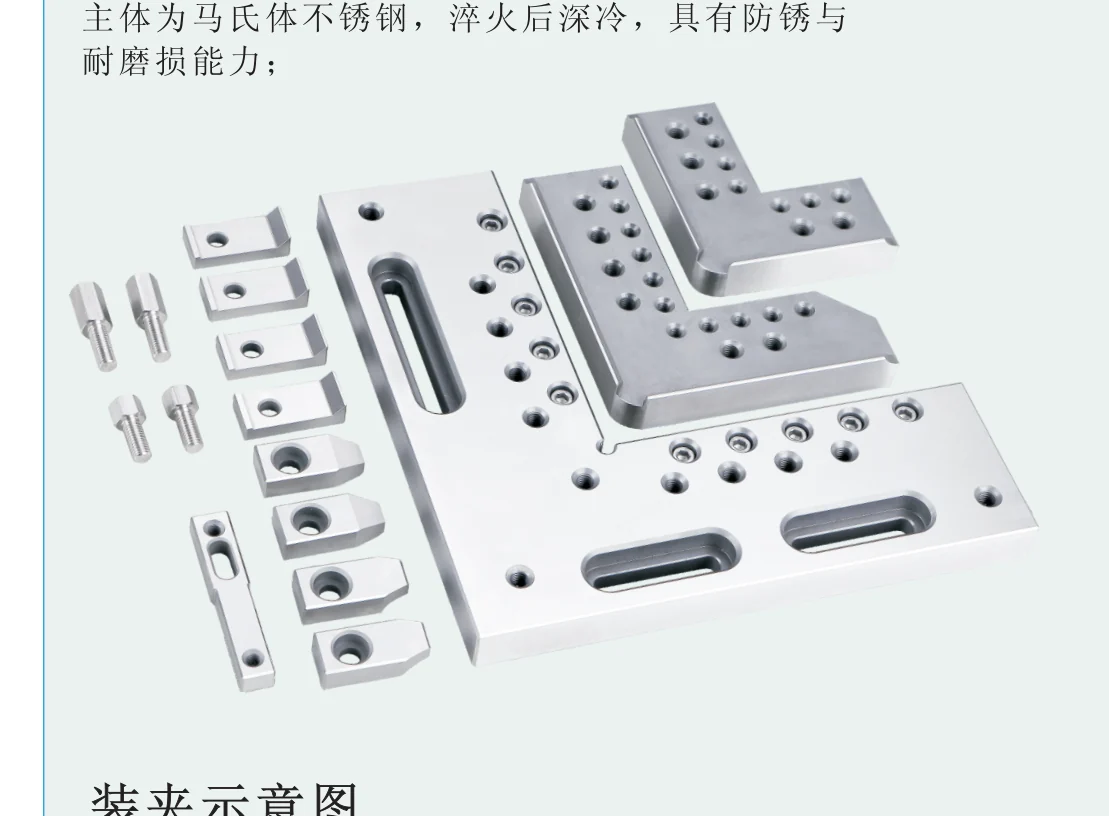

VIS668 Combination Vise
VIS668A full kit of right-angle clamping faces and blocks. A single set covers square, stepped and profiled work.

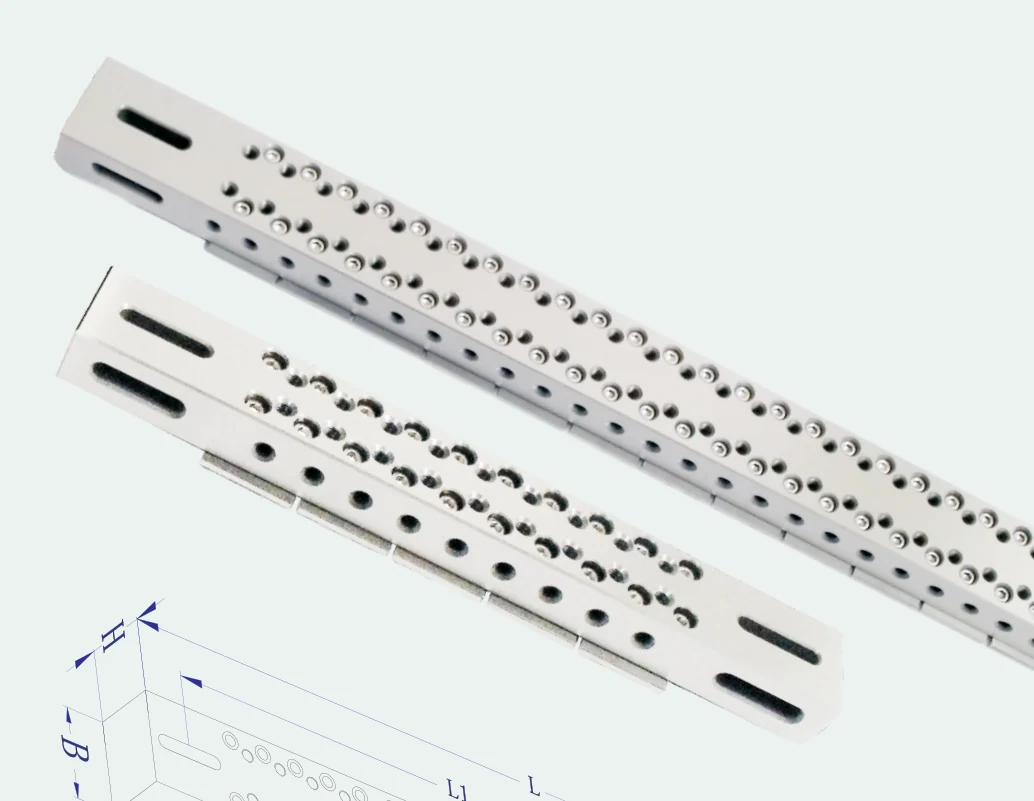

VIS690 Bridge
L370 – L950Maraging stainless steel bridge for large workpieces, sized to the centre distance of your machine table.
VIS686 Universal Base
VIS686The horizontal centring backbone of the system — special bearings let you centre a workpiece quickly and accurately.
Materials & tolerances
Chosen for the way EDM actually wears
An EDM fixture lives a hard life: constant thermal cycling, water-based dielectric, and a workpiece that is being eroded a few millimetres away from it. Material selection matters more here than in ordinary machining.
- Aluminium bodies — light, quick to machine, and thermally stable for general-purpose work.
- Maraging steel, SUS440, HRC 50–55 — for bridges, clamps and jaws that face continuous wear.
- Ground and lapped surfaces — flatness, parallelism and squareness held to 0.005 mm per 100 mm.
- 420 / 384 press plates — hold-down hardware matched to the fixture it clamps.
| Property | Specification |
|---|---|
| Material (bridge) | SUS440 maraging steel |
| Hardness | HRC 50–55 |
| Flatness | 0.005 mm / 100 mm |
| Parallelism | 0.005 mm / 100 mm |
| Squareness | 0.005 mm / 100 mm |
| Wire clearance | 0.2 mm leeway after adjustment |
| Clamp capacity | up to 20 kg (tooling series) |
How we work
Tell us the machine and the part — we handle the rest
1
Send the spec
Machine model, table centre distance, workpiece material and the drawing of your part.
2
Get a fixture proposal
We propose the vise or bridge combination, with clamping force and capacity checked against your cut.
3
Manufacture & verify
Machined, ground and inspected. Tolerance reports issued with every custom assembly.
4
Service & modify
Existing fixtures are repaired, re-bored or adapted as your machine and parts change.
Tell us which fixture you need
Send your machine model and a drawing or photo of the workpiece. We will recommend a model and quote from the standard range — or propose a modification if the standard part falls short.
